Case Study

RESEARCH VESSEL OSD-IMT2003

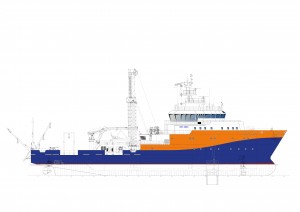

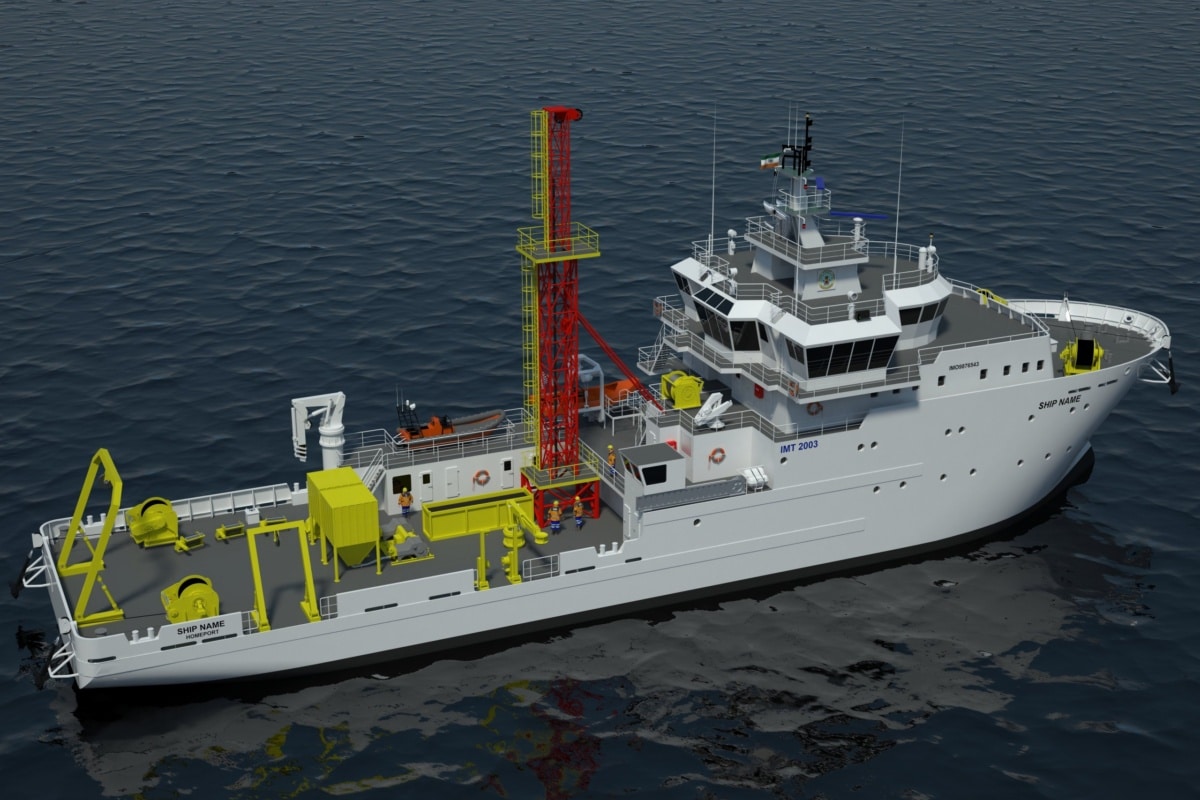

Project title: RESEARCH VESSEL OSD-IMT2003

The OSD-IMT2003 Geotechnical Research vessel is a shallow draught vessel specifically designed for working in coastal waters. In addition to having twin azimuth units and a multidirectional bow thruster, the vessel is equipped with a four point mooring system to ensure precise positioning when the seabed core sampling drilling unit is in operation. The vessel’s hydraulically operated drop keel is fitted with sonar sensors . The vessel is also capable of water column measurements and seabed sampling.

Principle Characteristics

L.O.A.: 68.66 m
L.B.P.: 60.57 m
Breadth MLD: 15.00 m
Depth MLD: 5.5 m
Draught: 3.00 m
Accommodation: 34

Other Information

Class: DNV: +1A1 RO EO SILENT-A, SILENT-S, DYNPOS-AUT
